Ribbed Panels
7.2 Rib Panel
The 7.2 Rib is one of our most commonly used panels. The 1.5” deep profile makes the panel very strong. It is also one of our least expensive panels making it the best choice for cost to strength ratio.
• Material: 24ga steel standard. Other gauges may be available.
• Available in perforated aluminum.
• Length: Up to 30’. Extra charges may apply for lengths shorter than 4’.
• Attachment: Exposed fasteners, color matched to panel.
• Finish: Factory applied 70% PVDF finish.
• Colors: Choose from standard color chart.
• Warranty: 20 years.
• Installation: Orient vertically or horizontally.

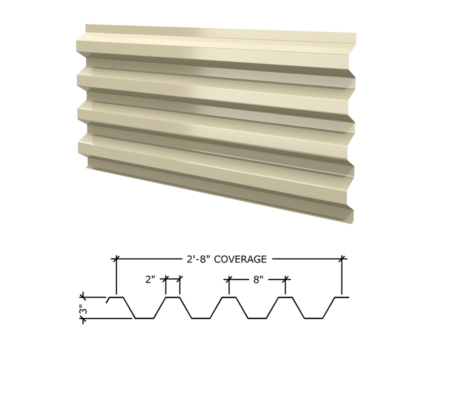

3 Inch Deep Rib Panel
This panel is the best choice for horizontal applications with high wind pressures. The 3” deep profile gives it a greater spanning capability than any other panel.
• Material: 24ga steel standard. Other gauges may be available.
• Length: Up to 30’. Extra charges may apply for lengths shorter than 5’.
• Attachment: Exposed fasteners, color matched to panel.
• Finish: Factory applied 70% PVDF finish.
• Colors: Choose from standard color chart.
• Warranty: 20 years.
• Installation: Orient vertically or horizontally.
Corrugated Panel
This inexpensive panel is an excellent choice for vertical applications when cost is a factor. Because of the shallow profile, it is not capable of spanning long distances.
• Material: 24ga steel standard. Other gauges may be available.
• Available in perforated aluminum.
• Length: Up to 30’. Extra charges may apply for lengths shorter than 4’.
• Attachment: Exposed fasteners, color matched to panel.
• Finish: Factory applied 70% PVDF finish.
• Colors: Choose from standard color chart.
• Warranty: 20 years.
• Installation: Orient vertically or horizontally.
R-Panel
This inexpensive panel is an excellent choice for vertical applications when cost is a factor. Because of the shallow profile, it is not capable of spanning long distances.
• Material: 24ga steel standard. Other gauges may be available.
• Length: Up to 30’. Extra charges may apply for lengths shorter than 4’.
• Attachment: Exposed fasteners, color matched to panel.
• Finish: Factory applied 70% PVDF finish.
• Colors: Choose from standard color chart.
• Warranty: 20 years.
• Installation: Orient vertically or horizontally.
U-Panel
This inexpensive panel is an excellent choice for vertical applications when cost is a factor. Because of the shallow profile, it is not capable of spanning long distances.
• Material: 24ga steel standard. Other gauges may be available.
• Length: Up to 30’. Extra charges may apply for lengths shorter than 4’.
• Attachment: Exposed fasteners, color matched to panel.
• Finish: Factory applied 70% PVDF finish.
• Colors: Choose from standard color chart.
• Warranty: 20 years.
• Installation: Orient vertically or horizontally.
