The rise of data centers, dense urban development and mixed-use projects is leading to residential, commercial and industrial spaces being closer together than ever before.
This shift has architects, contractors, designers and building owners searching for solutions that address both noise control and visual concealment.
SoundGuard® was created to solve these challenges by integrating acoustical dampening with equipment screening.
This Article Will Cover:
- SoundGuard® Overview: A dual-purpose solution to control noise and conceal rooftop units in urban, industrial and mixed-use environments.
- Proven Performance: Independent testing confirms high acoustic ratings (1.15 NRC, 38 STC) for both sound absorption and transmission loss.
- Project-Specific Flexibility: Customizable design allows targeted sound attenuation without unnecessary costs.
- Comprehensive Support: Includes design consultation, free preliminary layouts and project support from concept through installation.
- Practical Benefits: Meets regulatory noise requirements and delivers a long-lasting, aesthetic solution across multiple building types.
Balancing Acoustics and Design

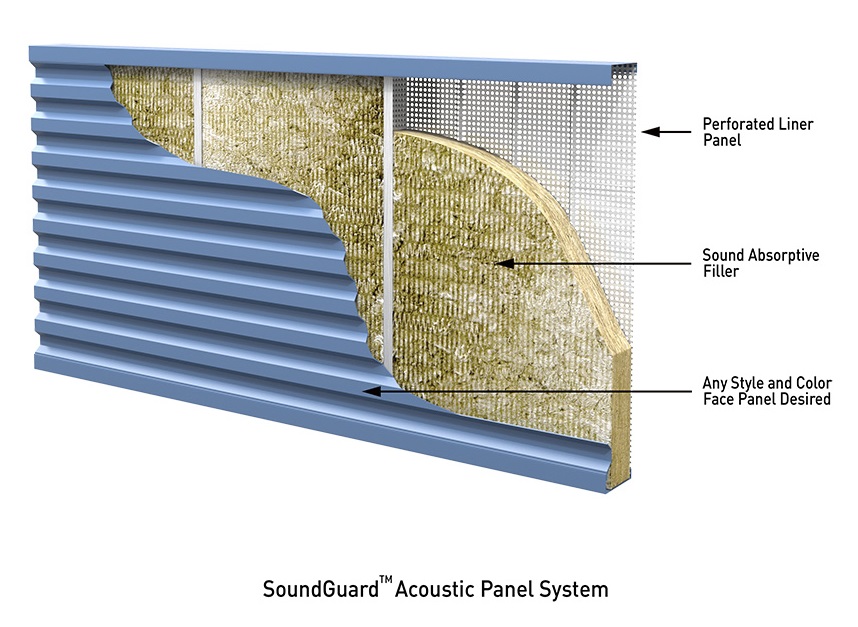

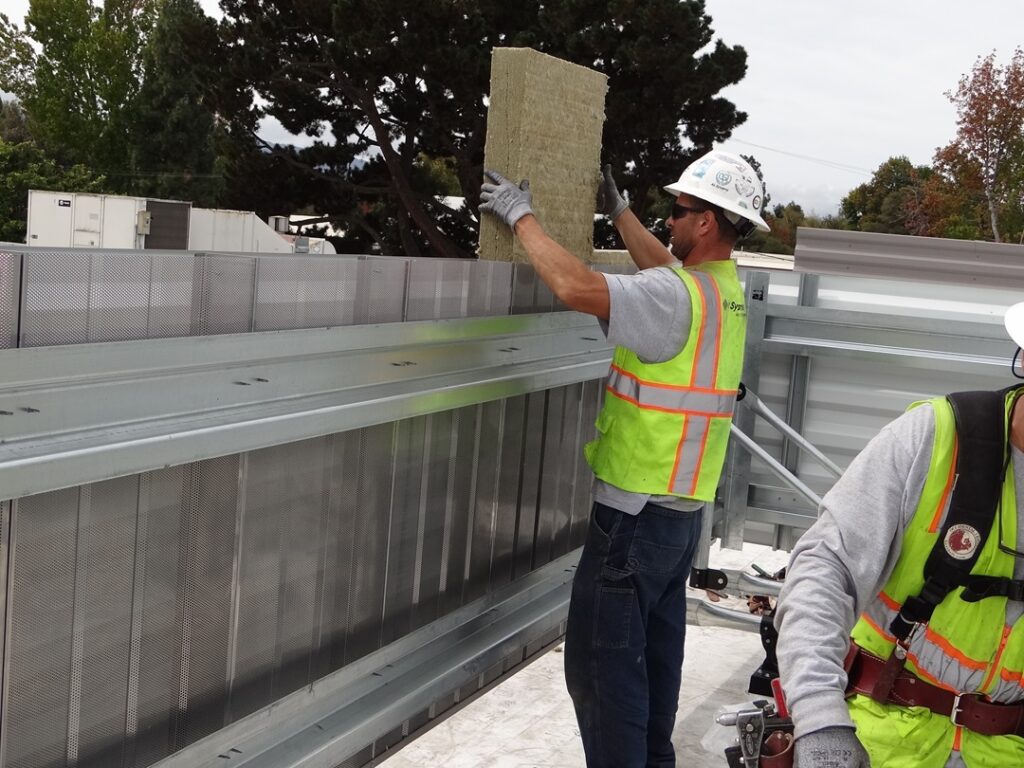

SoundGuard® panels are engineered with an absorptive core of mineral wool insulation, secured between a perforated liner and a customizable exterior face panel. This configuration allows sound to pass through the perforations and be absorbed rather than reflected, reducing both the volume and harshness of mechanical noise. The outward-facing metal cladding provides a clean, customizable architectural finish.
A wide range of finishes, textures and profiles are available, ensuring that the system can be designed to complement surrounding building materials.
Proven Performance
When addressing noise pollution, it is beneficial to talk numbers.
Independent testing has confirmed that SoundGuard® achieves performance ratings of 1.15 NRC (Noise Reduction Coefficient) and 38 STC (Sound Transmission Class).
NRC measures the ability of a material to absorb sound (similar to how a sponge absorbs water) while STC measures how effectively a barrier prevents sound from passing through to the other side.
These results place SoundGuard® among the highest-performing outdoor acoustic systems available, offering measurable reductions in both sound absorption and transmission.
Designed for Durability and Safety
SoundGuard® is engineered for long-term performance in demanding outdoor environments. The internal insulation is non-hygroscopic, resistant to moisture and incombustible with a melting point above 2,000°F, meeting ASTM E-136 standards.

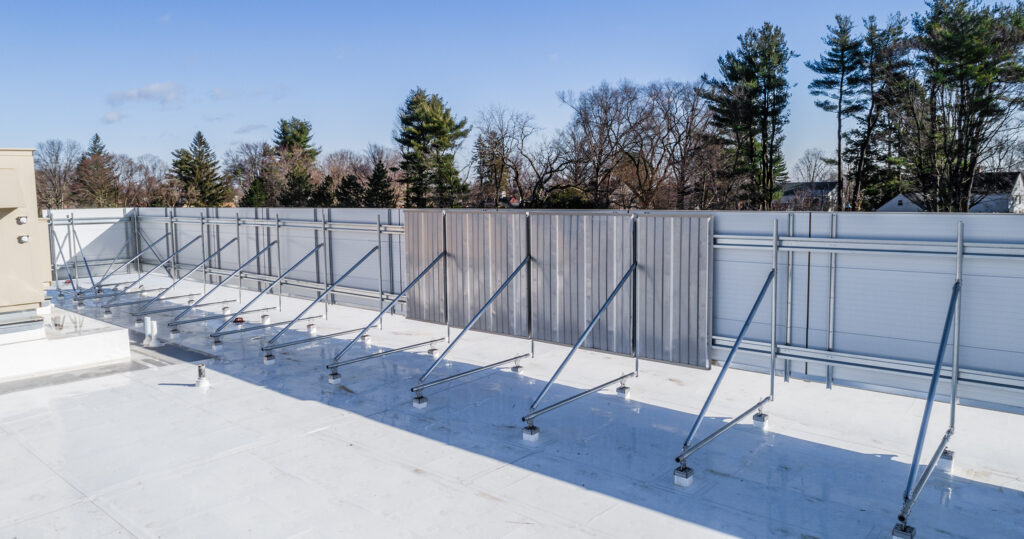

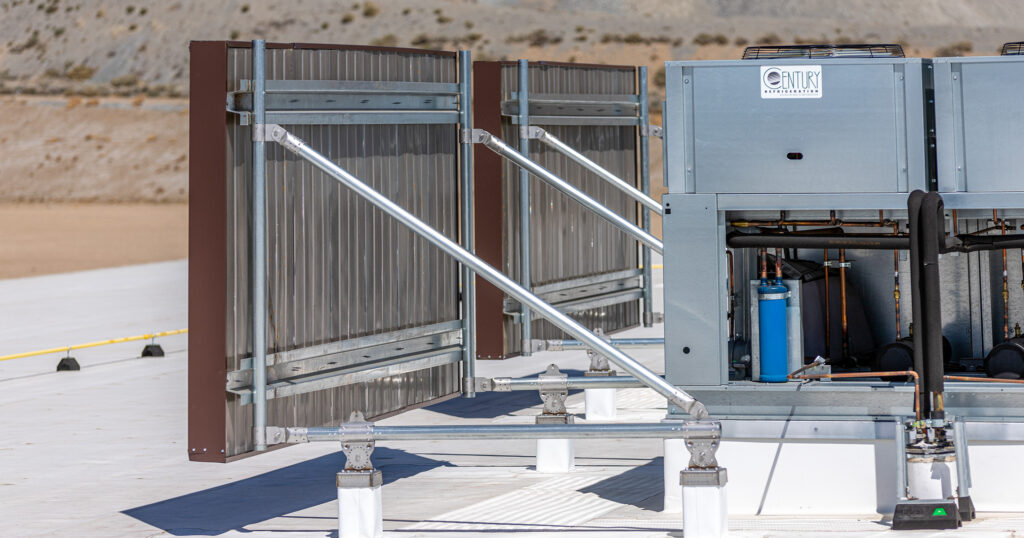

Unlike ballasted sound walls, which can stress roofing systems and create leak risks, SoundGuard® is mechanically fastened to structural framing, ensuring both stability and roof protection.
Every system is backed by a 20-year warranty – we’re serious about reliability.
Adapting to Project-Specific Needs
Many projects require vision screening along an entire roofline, but only certain areas need the added benefit of sound attenuation.
With SoundGuard®, acoustical panels can be placed only where necessary, while standard vision-proofing panels are used elsewhere. This flexibility provides a cohesive architectural appearance without adding unnecessary cost or materials.
Support From Concept Through Installation
Because every job and piece of equipment presents unique acoustical challenges, collaboration during the design process is essential.
RoofScreen offers design consultation and ongoing project support to ensure each installation meets both performance goals and aesthetic intent.
From complimentary preliminary layouts for architects to final installation details, RoofScreen provides the resources needed for a seamless project experience.
A Smarter Approach to Noise Control
SoundGuard® is a comprehensive solution to one of the most prevalent and growing challenges in modern construction.
By combining noise reduction, visual screening, structural durability and architectural adaptability, it helps projects meet today’s stricter regulatory requirements and creates more comfortable environments for surrounding communities.
Whether for a new data center, or a rooftop retrofit on a mixed use building, SoundGuard® delivers proven acoustic performance with design freedom architects and building owners will love.
